Accessories, Gimbal Camera
UAV payload gimbal stabilizer camera with 1080p HD image quality
Availability:
20 in stock
$10,900.00
20 in stock
CompareUAV payload gimbal stabilizer camera with 1080p HD image quality

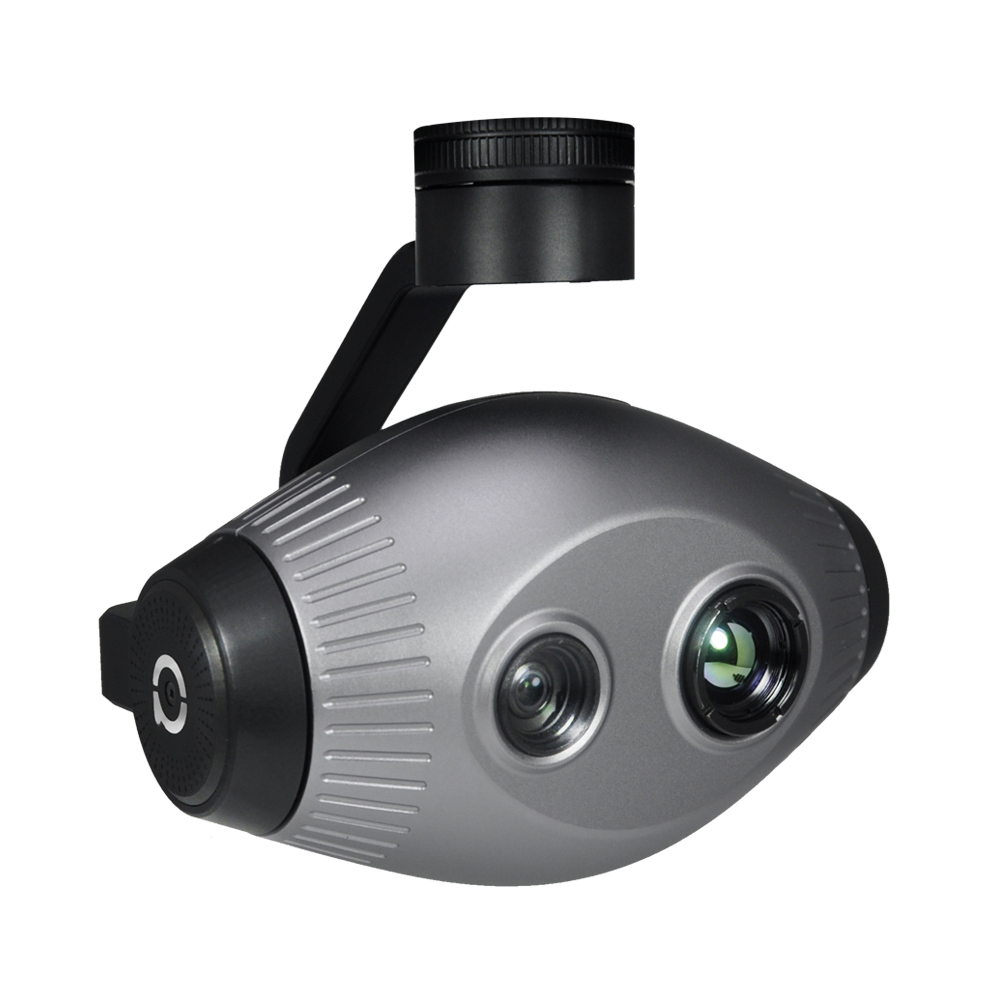

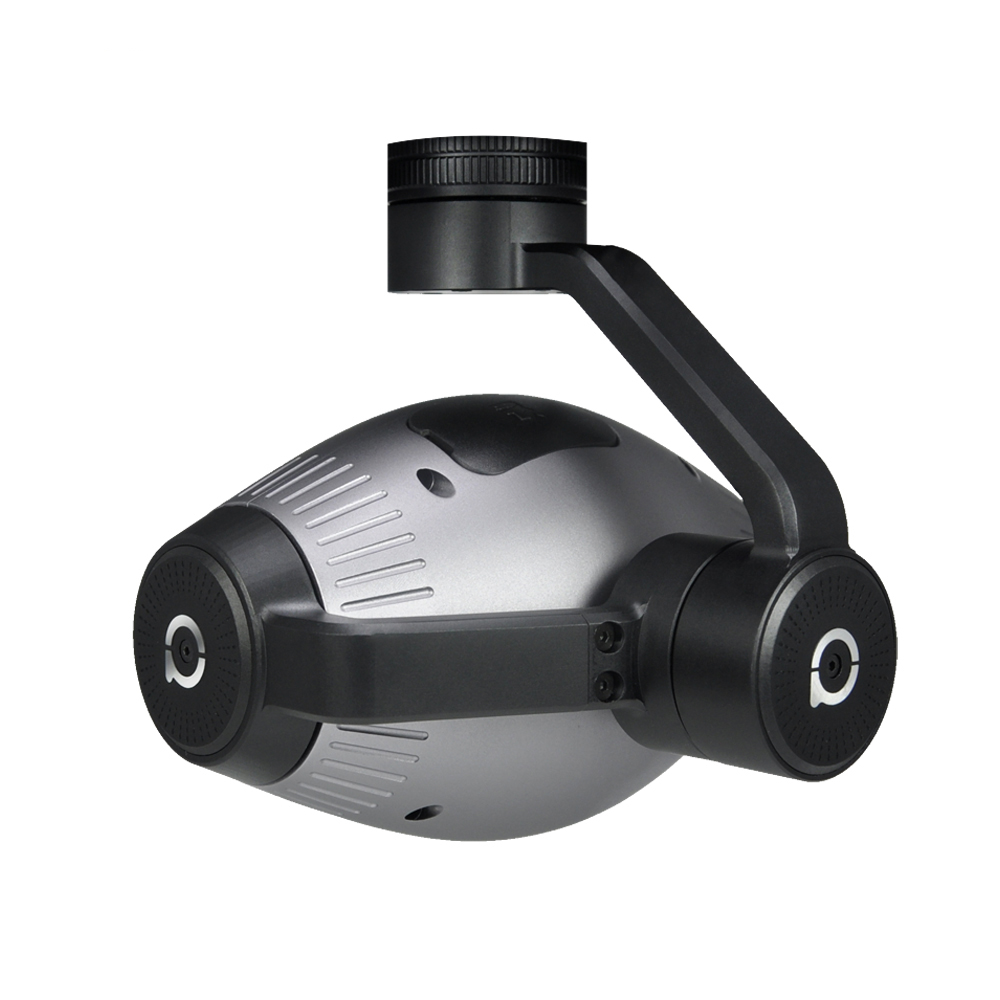

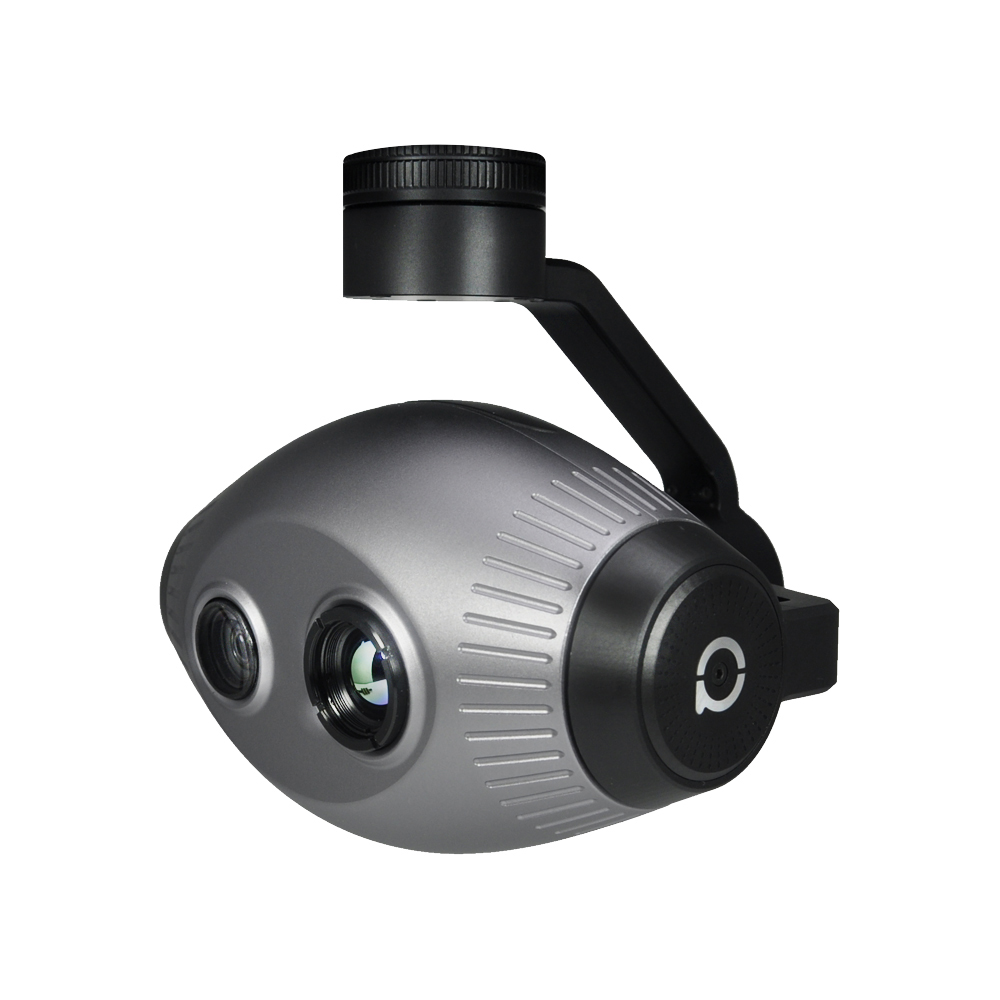

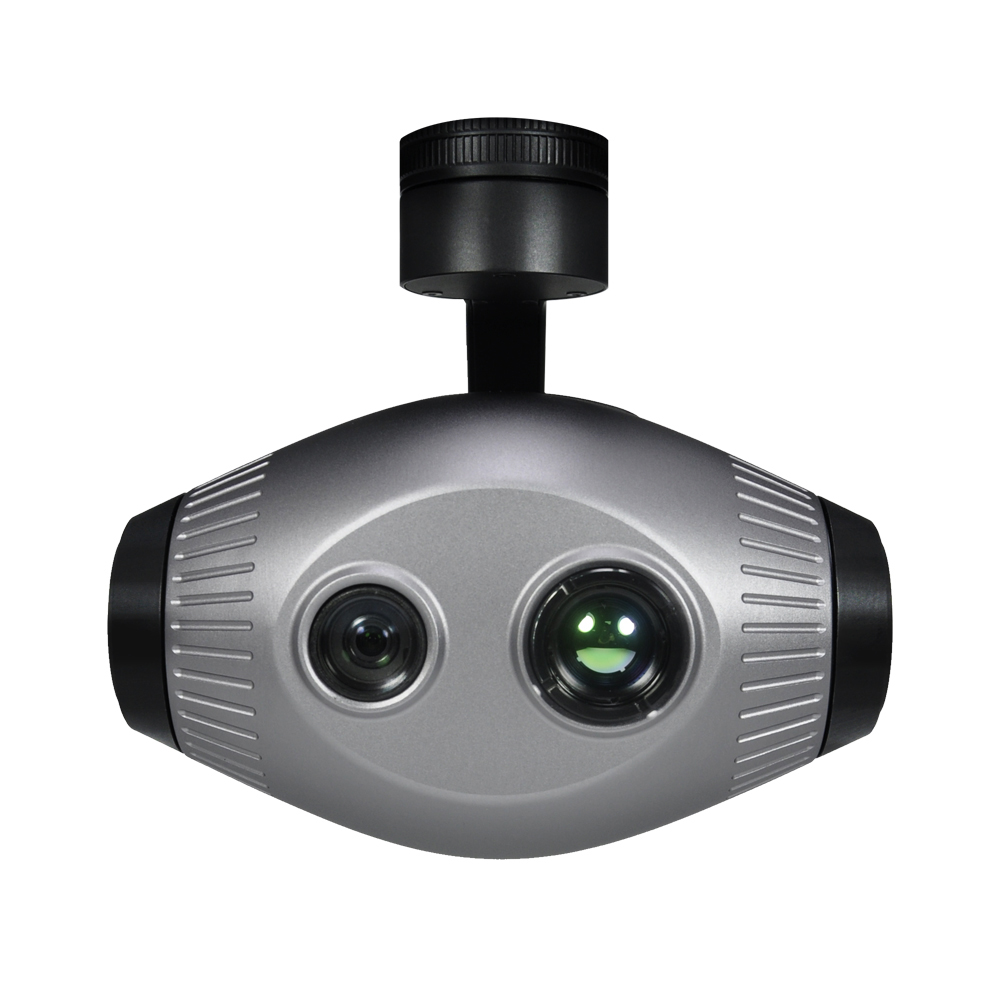

UAV payload gimbal camera features an 10x optical zoom lens. It’s powered by 1/3″CMOS module, 4.08 million effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, thermal imaging tracking. It is compact size, light weight, support PWM, S. BUS and TTL. All parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.
Advantage
* Highly competitive cost
* DJI’s strategic partner
* Leading in the field for UAV payload of advanced technology.
* Certified by CE/ROHS authoritative institution.
|
Product Name:
|
UAV gimbals camera
|
|
Model
|
Rugby
|
|
Image sensor:
|
1/3 inch CMOS
|
|
Lens:
|
10x optical zoom, F=3.2~33.6mm
|
|
Thermal imager:
|
640×480
|
|
640×480, 25mm lens:
|
16×16″pixel~128×128″pixel
|
|
Working voltage:
|
12V(4s~6s)
|
|
Output:
|
Micro HDMI 1080P/ IP / SDI
|
|
Local storage:
|
SD card up to 128G
|
|
Pitch/Tilt:
|
±90°
|
|
Roll:
|
±85°
|
|
Yaw/Pan:
|
±170° / ±360°*N (IP / SDI output)
|
|
Vibration angle:
|
Pitch/Roll: ±0.01°, Yaw:±0.01°
|
| Weight | 3.5 kg |
|---|---|
| Dimensions | 30 × 30 × 25 cm |
Technical Specifications
|
Product Name:
|
UAV gimbals camera
|
|
Model
|
Rugby
|
|
Image sensor:
|
1/3 inch CMOS
|
|
Lens:
|
10x optical zoom, F=3.2~33.6mm
|
|
Thermal imager:
|
640×480
|
|
640×480, 25mm lens:
|
16×16″pixel~128×128″pixel
|
|
Working voltage:
|
12V(4s~6s)
|
|
Output:
|
Micro HDMI 1080P/ IP / SDI
|
|
Local storage:
|
SD card up to 128G
|
|
Pitch/Tilt:
|
±90°
|
|
Roll:
|
±85°
|
|
Yaw/Pan:
|
±170° / ±360°*N (IP / SDI output)
|
|
Vibration angle:
|
Pitch/Roll: ±0.01°, Yaw:±0.01°
|
