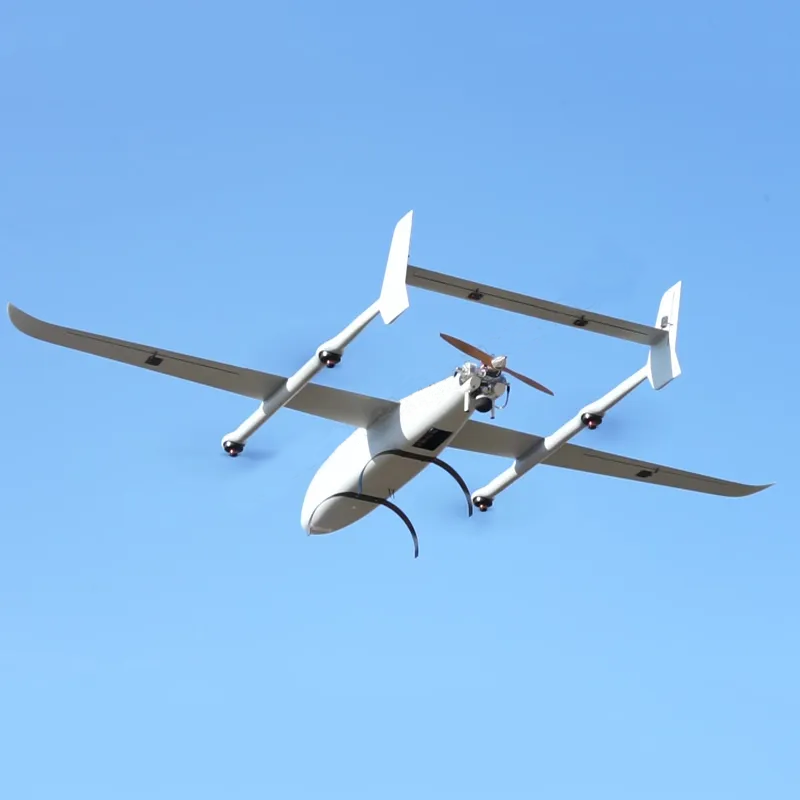

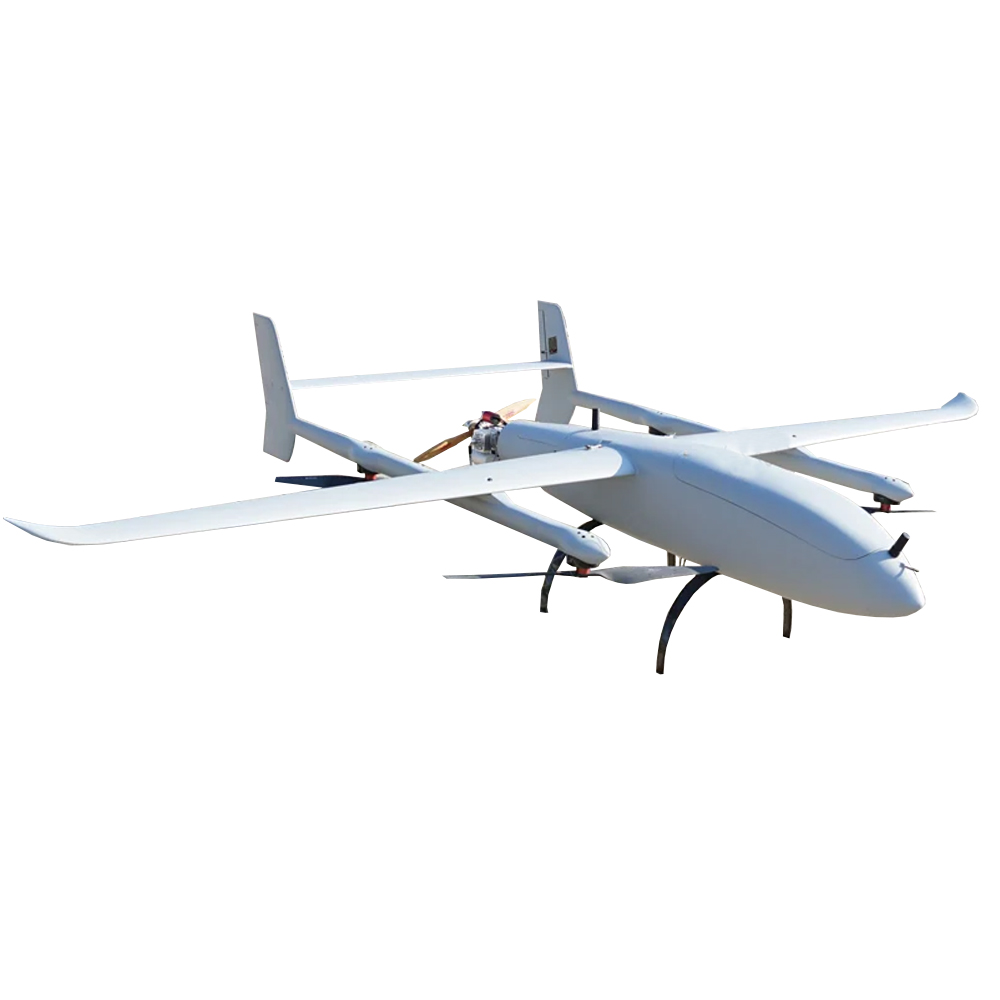

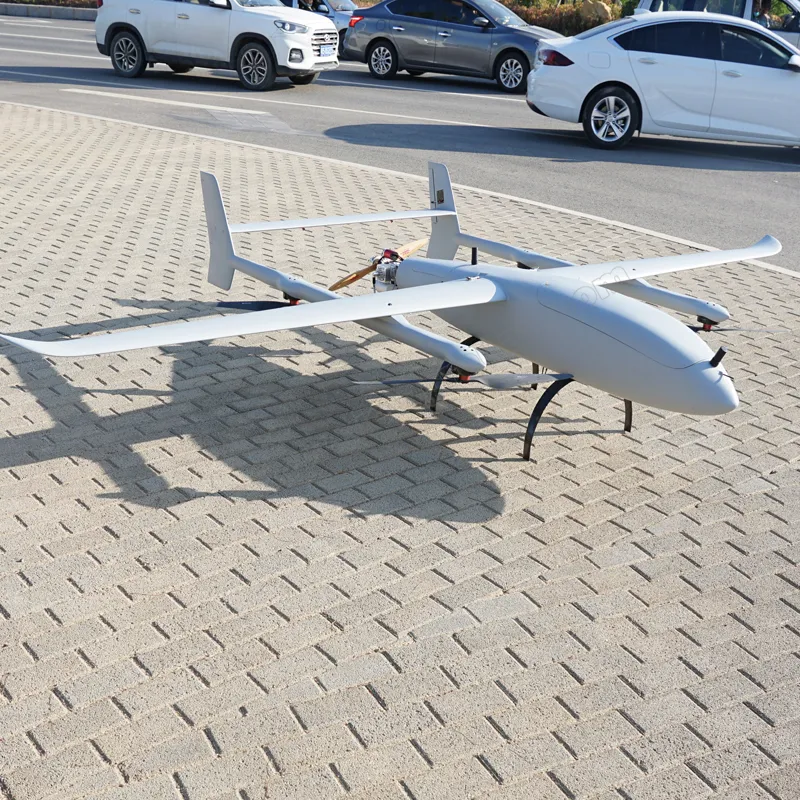

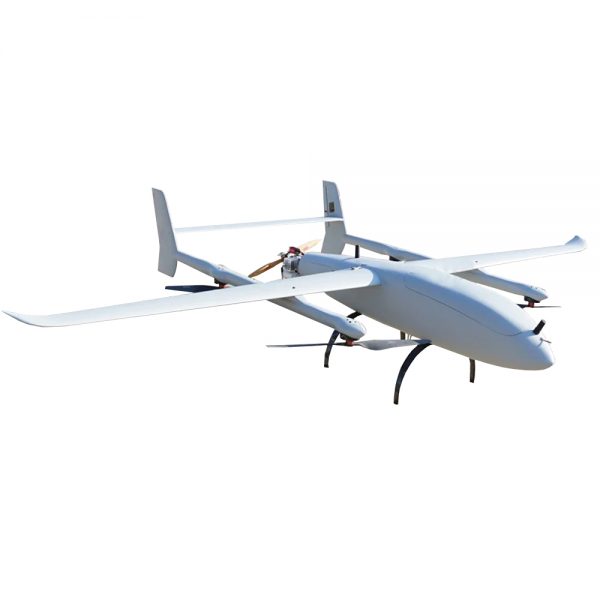

FD390 VTOL UAV frame for mapping and surveillance

FD390 VTOL UAV  frame is  good for mapping and surveillance it’s adopts a conventional 4+1 layout and does not require a runway for take-off and landing, which can ensure that it can operate smoothly in mountainous areas, hills and other complex terrain areas, greatly expanding the application range of the flight platform, and is an good choice for industrial-grade UAVs.

Specifications

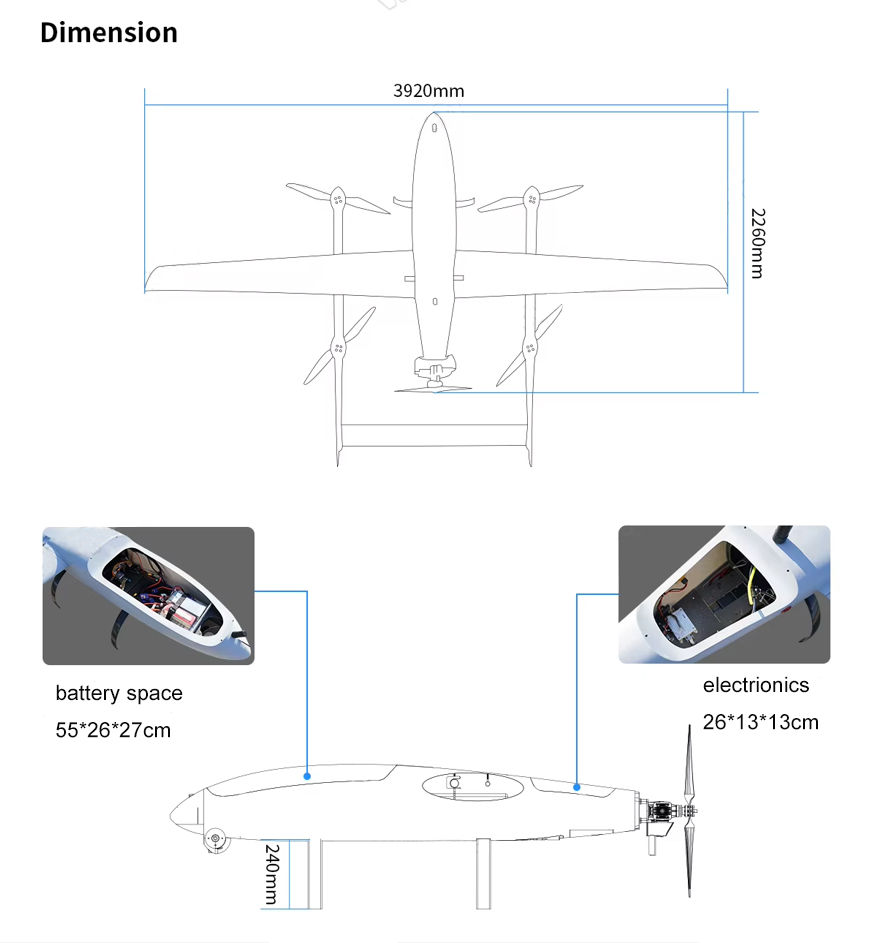

Length：2360mm

Height：700mm

Wingspan：3920mm

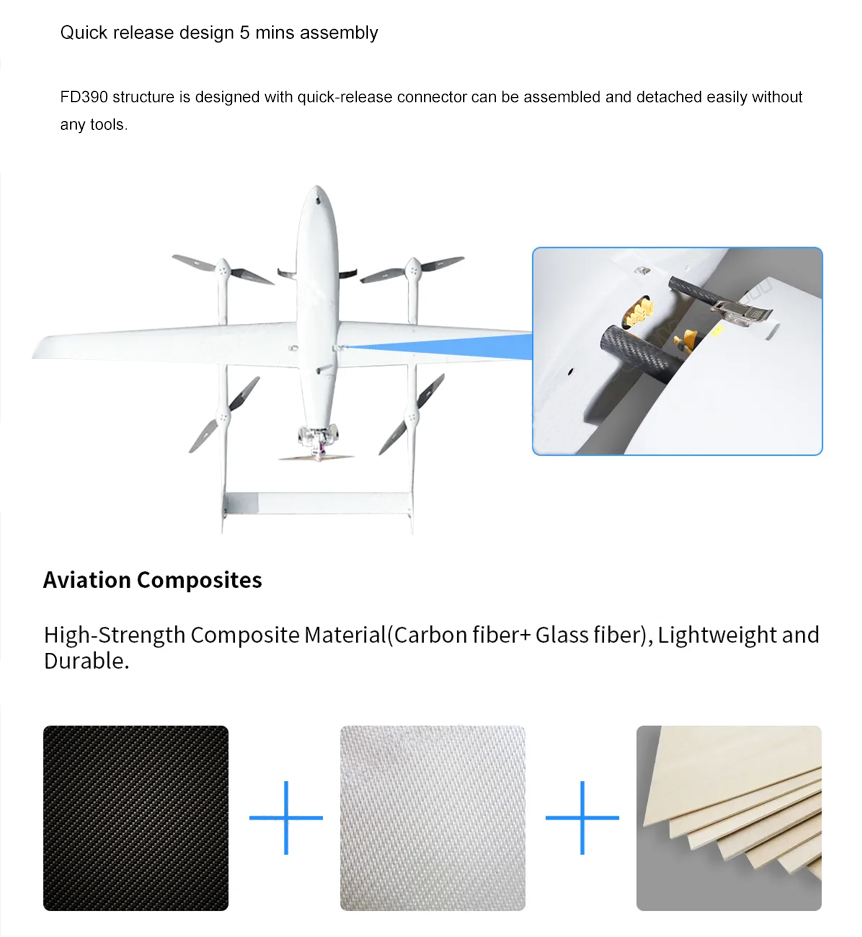

Material：Aviation carbon fiber composites

Payload weight(including gasoline): 10-20 kg

Max. takeoff weight：35kg

Level speed：21-40m/s

Cruising speed：25m/s

Fuel consumption：VTOL 1L/h,  fixed-wing 0.95L/h

Max.range： 900 km@3kg(VTOL), 947 km@11kg(fixed-wing)

Altitude limited：3500m

Operation Temperature：-20°C-45°C

Wind resistance：take-off level 5/ cruising level 6

Packing size：2250*680*600mm

Protection IP：IPX4

NOTE： THE PRICE IS JUST FRAME KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
