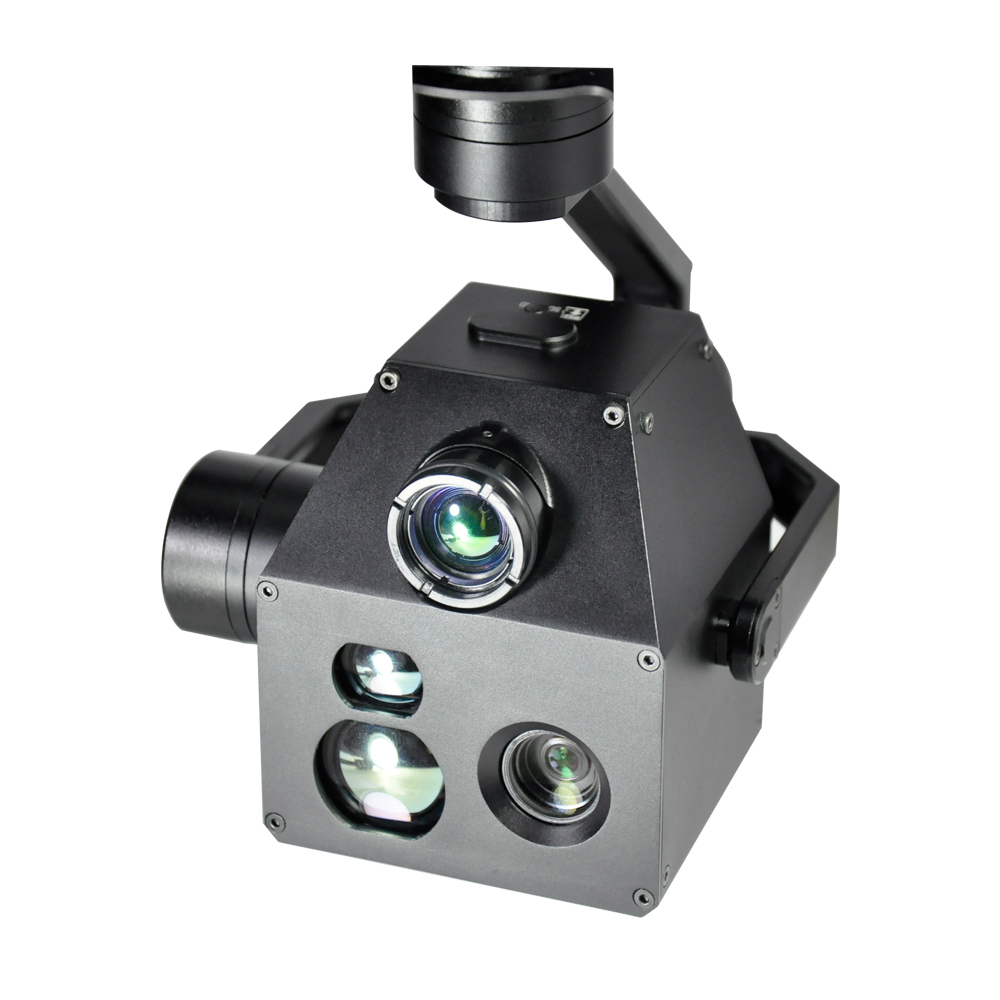

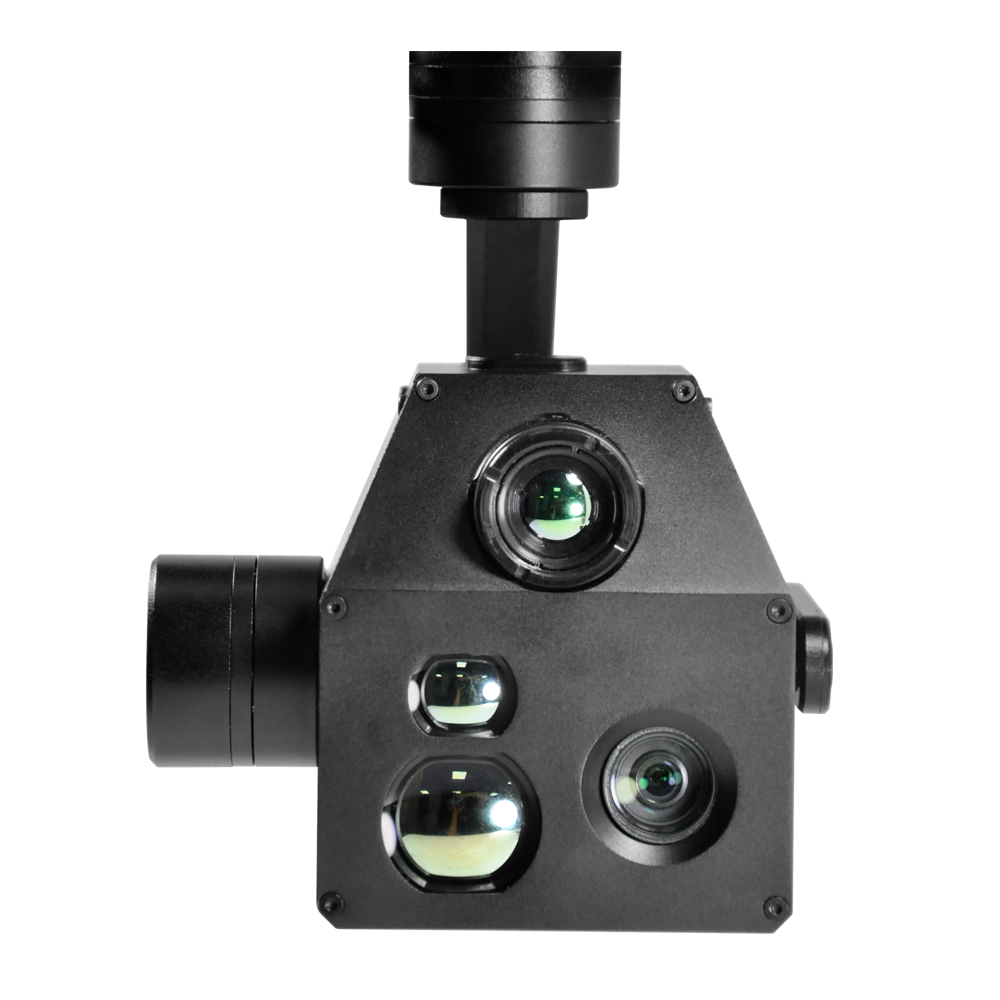

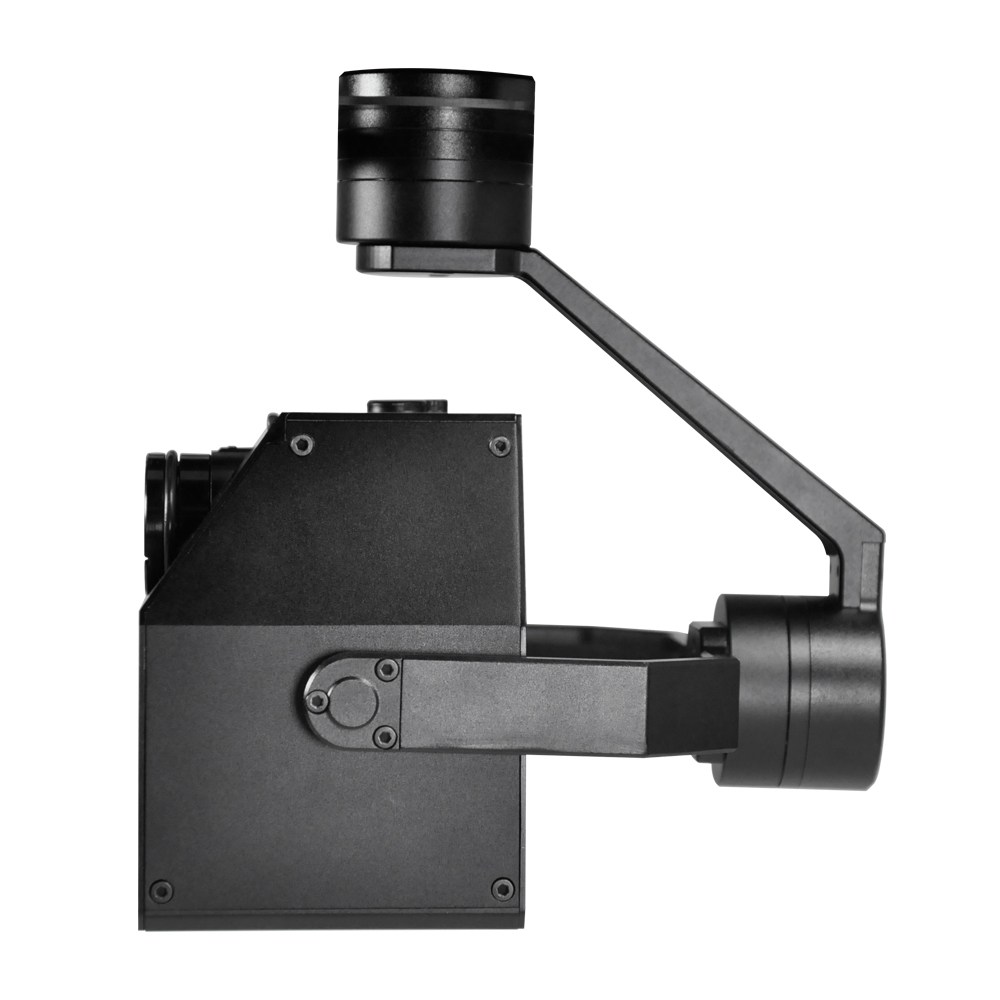

dji gimbal 10x Zoom Thermal Imager Laser Rangefinder Object Tracking UAV / Drone Gimbal Camera

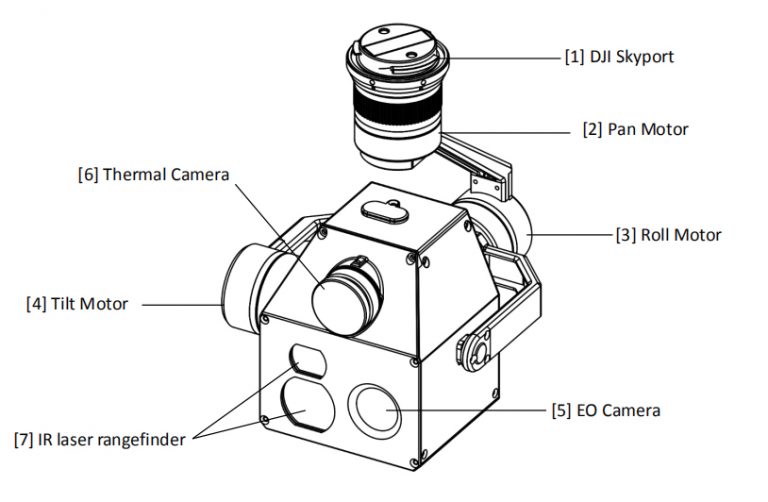

dji gimbal Z10TIRM is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it can meet many powerful functions, such as: photos or videos with 10 times optical zoom, object tracking, laser rangefinder, thermal imager and so on. The speed of Z10TIRM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly. Main Features – 10x optical zoom day camera – 640*480 19mm 25HZ thermal camera – 5~1500m IR laser rangefinder – GPS location resolving – Object tracking for both EO & IR cameras – Competible with DJI drones M200 / M210 / M210RTK. – 550g
Hardware Parameter
|
|
Working voltage
|
12V
|
Working environment temp.
|
-20℃ ~ +60℃
|
Output
|
Skyport
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
Control method
|
DJI Pilot
|
Gimbal Spec
|
|
Pitch/Tilt
|
±90°
|
Roll
|
±85°
|
Yaw/Pan
|
±360°
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw:±0.01°
|
One-key to center
|
√
|
Camera Spec
|
|
Imager Sensor
|
1/3″ CMOS
|
Picture quality
|
Full HD 1080 (1920*1080)
|
Effective pixel
|
4.08MP
|
Lens optical zoom
|
10x, F=3.2~33.6mm
|
Thermal imager spec
|
|
Lens size
|
19mm
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
Detector pixel
|
640*480
|
Pixel size
|
17μm
|
Object Tracking
|
|
Update rate of deviation pixel
|
25Hz
|
Output delay of deviation pixel
|
<3ms
|
Minimum object size
|
16*16 pixel
|
Maximum object size
|
128*128 pixel
|
Tracking speed
|
±32 pixel/frame
|
Object memory time
|
100 frames (4s)
|
Laser Rangefinder
|
|
Range
|
5~1500 meters
|
Location Resolving
|
Latitude and longitude of target
|
Ranefinder
|
Target distance measuring
|
