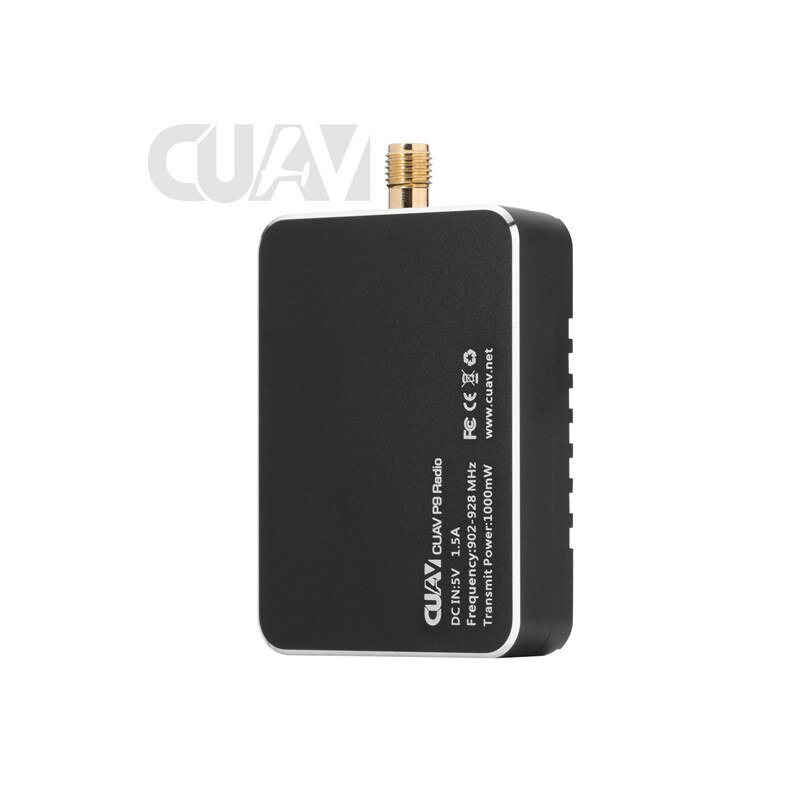

CUAV P9 Radio P900 30KM digital transmission pix digital transmission station pixhack long distance data transmission
$423.00
CompareCUAV P9 Radio P900 30KM digital transmission pix digital transmission station pixhack long distance data transmission

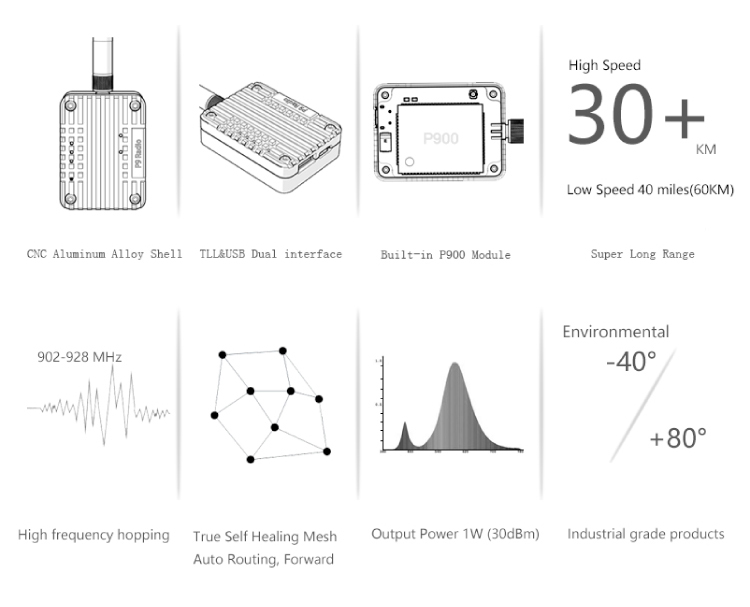

CUAV P9 Radio is the latest unmanned aerial vehicle data link communication module, which has the characteristics of high power, high speed, high receiving sensitivity and so on. Cuav is very suitable for UAV Communication System.
Characteristic:
Technical specifications:
Frequency 902-928 MHz
Spreading Method Frequency Hopping
Forward Error Detection Hamming /BCH/Golay/Reed-Solomon
Error Detection Error Detection 32 bits of CRC, ARQ
Encryption Optional (see -AES option)
Range 40 miles (60 km)
Sensitivity -110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Output Power 100mW – 1W (20-30dBm)
Serial Interface 3.3V CMOS TTL
Serial Baud Rate Up to 230.4 kbps asynchronous
Link Rate 115 – 276 kbps
Operating Modes Mesh, Auto Routing, Store and Forward,Self Healing, Packet Routing Modes
Blocking +/- 1 MHz > 55 dBc
+/- 2.5 MHz > 60 dBc
+/- 5 MHz > 65 dBc
> 930 MHz > 70 dBc
< 890 MHz > 70 dBc
Remote Diagnostics Battery Voltage, Temperature, RSSI,Packet Statistics
Core Voltage 5.0V + -0.25V
Power Consumption Sleep < 1mA
Idle 3.5mA
Rx: 35mA to 80mA
Tx : 800mA to 1200mA

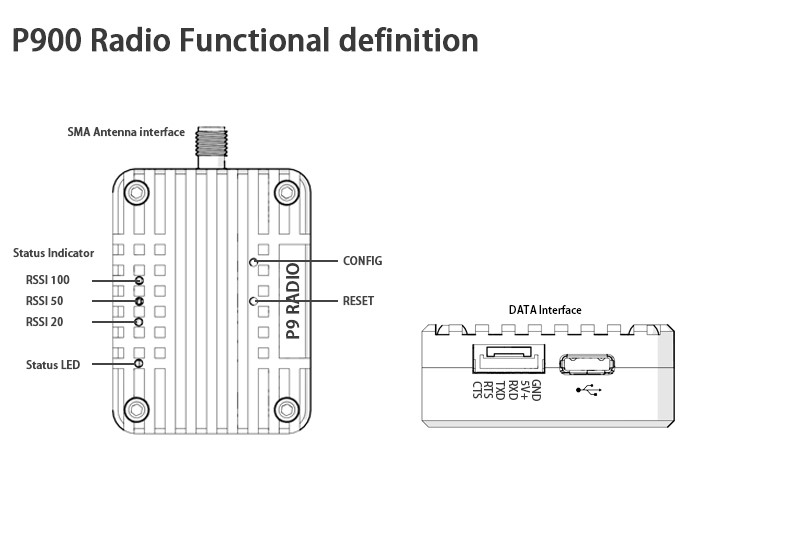

Connectors:
Anternna SMA

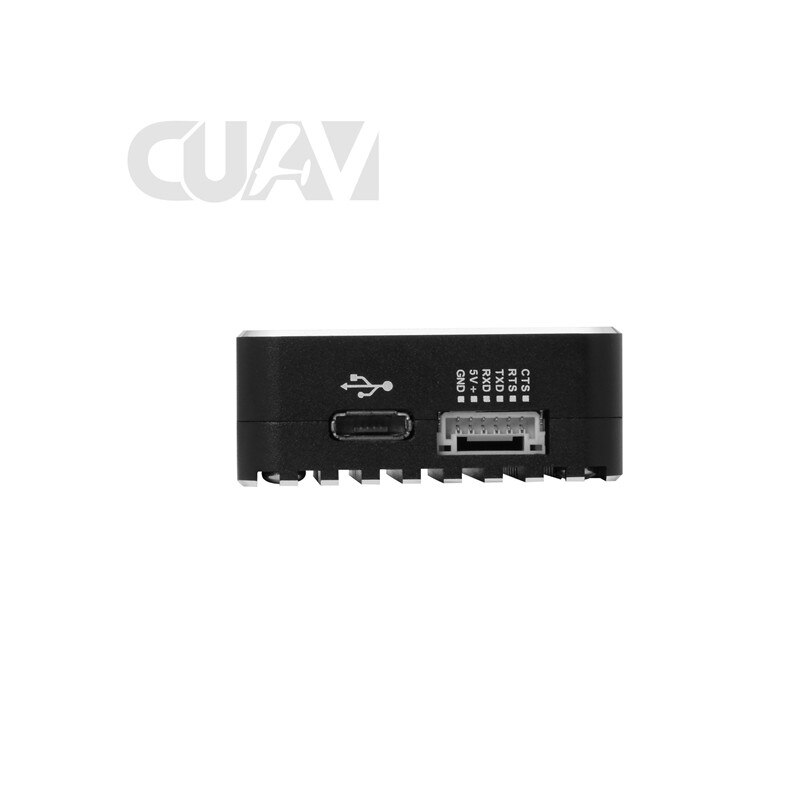

DATA GH1.25-6P&USB
Environmental -55o C – +85o C
Size 51.2MM*38.2MM*15.5MM
CUAV P9 Radio Order Option s
-AES 128-bit AES Encryption (requires permit for export outside of Canada and USA.)
-ENC Enclosed Model

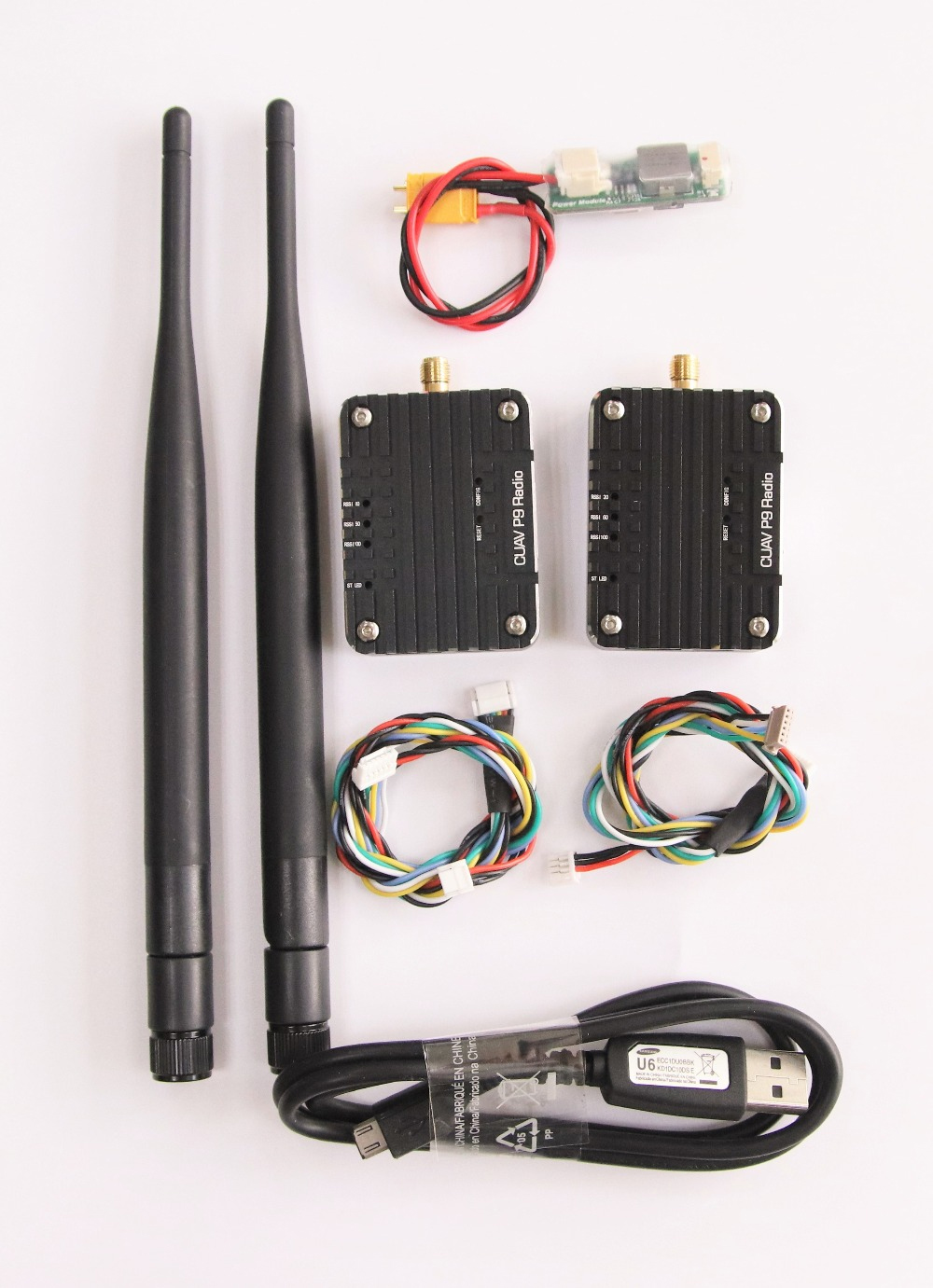

Your CUAV P9 Radio Purchase Includes:
2x P9 Radio
1x 3-12S Power supply module
2x 900MHZ Antenna
1x Micro USB cable
1x PIXHACK Data Cable
1x PIXHAWK Data Cable
| Weight | 1.5 kg |
|---|---|
| Dimensions | 35 × 20 × 20 cm |
