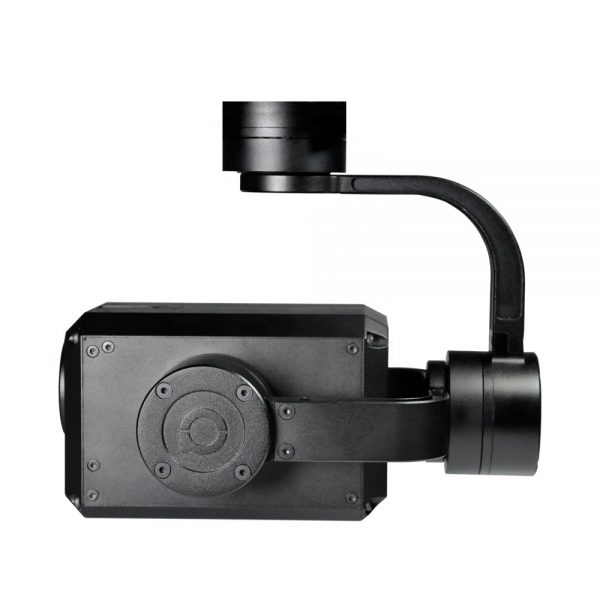

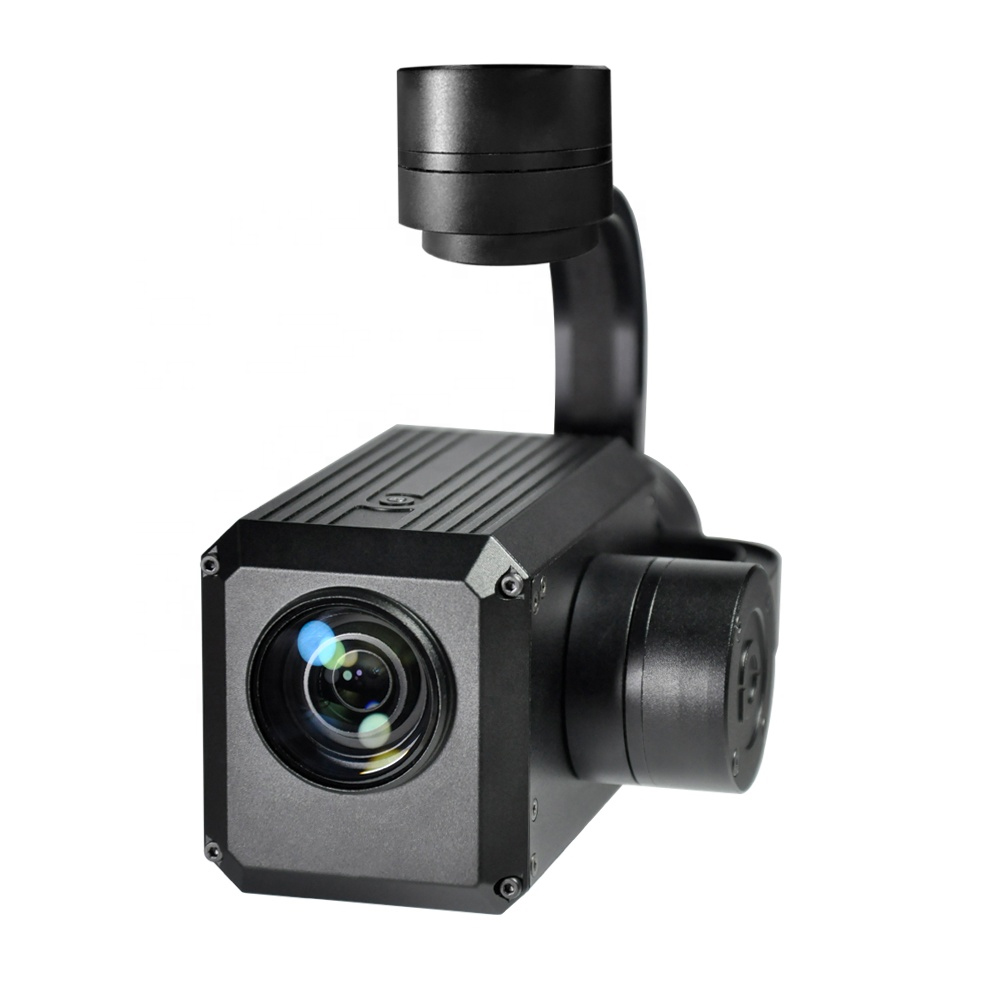

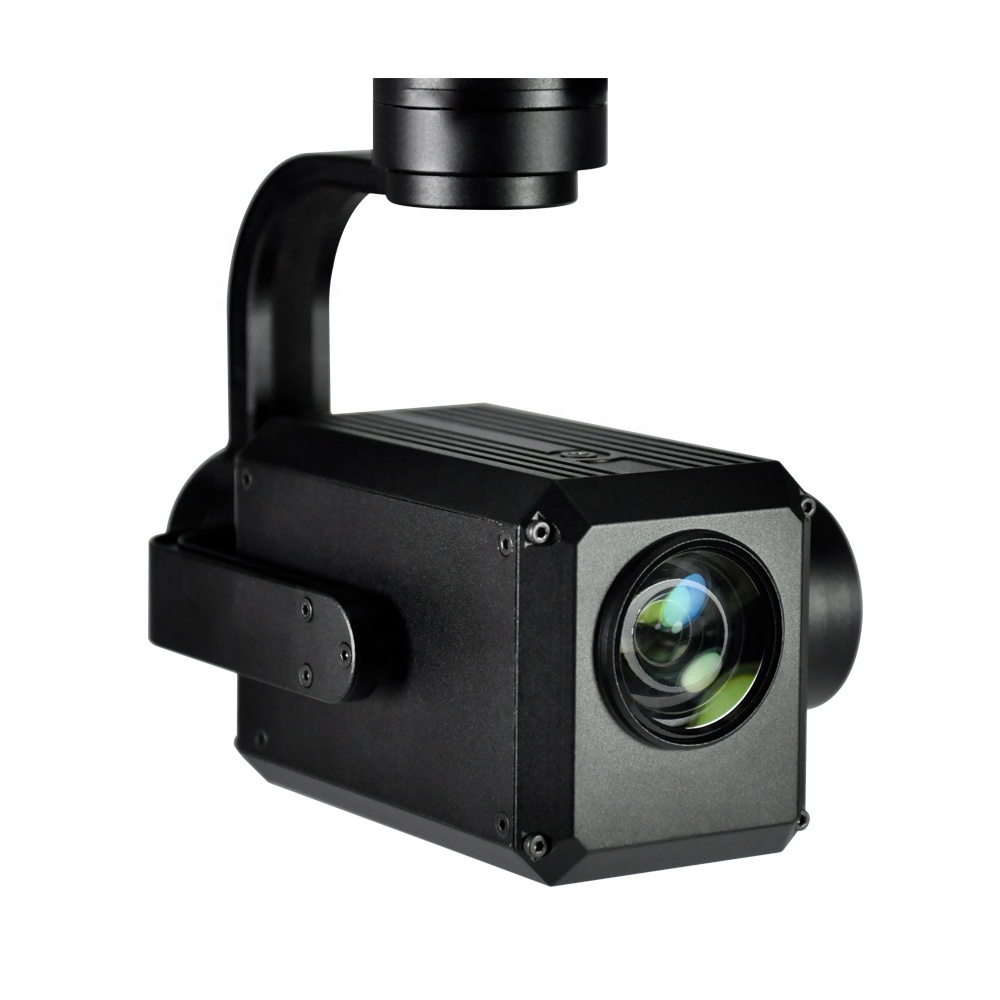

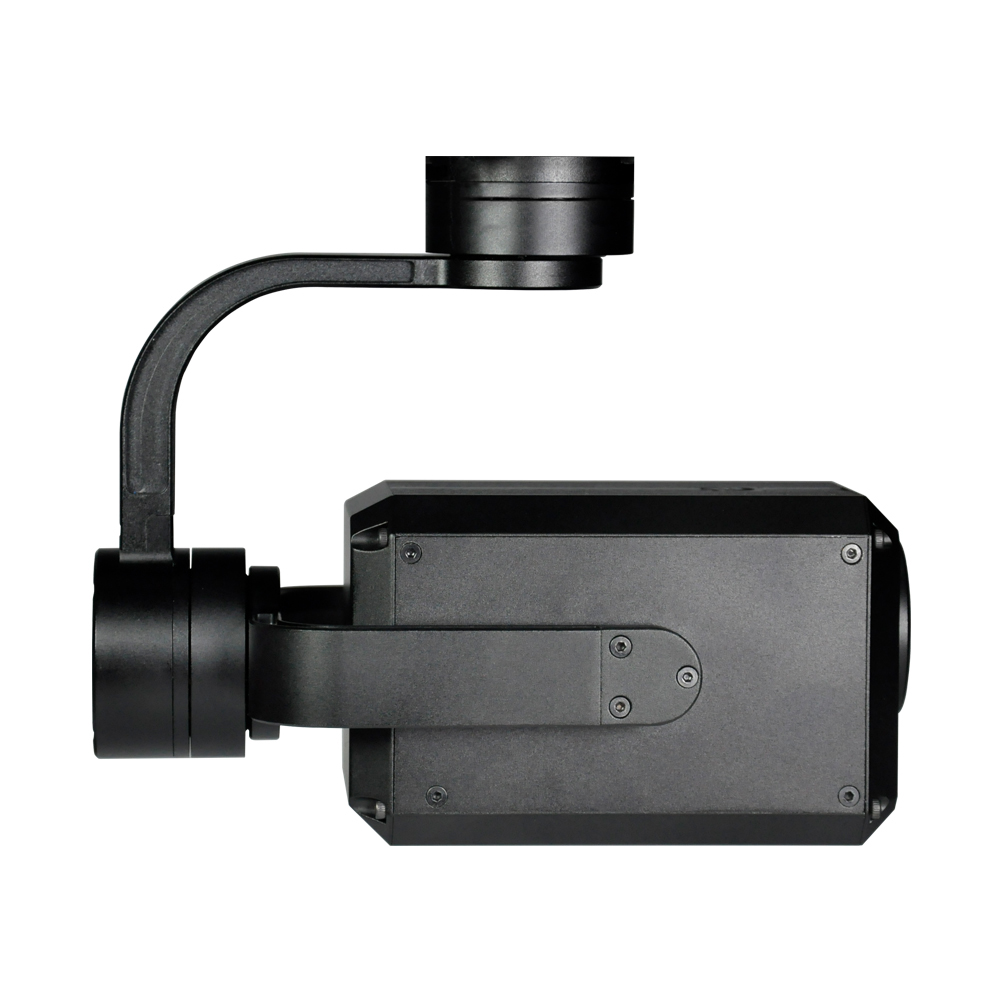

40x 4K FHD Gimbal Camera Object Tracking optical zoom payload for DJI UAV drone for Inspection
30 in stock
$7,290.00
30 in stock
Compare40x 4K FHD Gimbal Camera Object Tracking optical zoompayload for DJI UAV drone for Inspection
40x 4K FHD Gimbal Camera Z40K is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 20 times optical zoom. It can be used on DJI drones M200 / M210 / M210RTK and controlled directly and fully by APP DJI PILOT. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, Z40K is engineered for inspection especially power and utility industry. The speed of Z40K gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key
to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.
Main Features
– Panasonic 1/2.3″ CMOS
– 20x optical zoom, 40x in FHD video mode
– 25.9MP 4K video camera
– HDMI 1080p output
– 2 SD card storage, up to 128G
– N.W. 595g
– Competible with DJI drones M200 / M210 / M210RTK
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Working environment temp. |
-40℃ ~ +60℃
|
|
Output
|
Skyport
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
DJI Pilot
|
|
Gimbal Spec
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±360°*N
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw:±0.03°
|
|
One-key to center
|
√
|
|
Camera Spec
|
|
|
Imager Sensor
|
Panasonic 1/2.3inch CMOS
|
|
Optical Image Stabilization
|
5 axis Optical Image Stabilization
|
|
Effective pixel
|
25.9MP
|
|
Lens optical zoom
|
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
|
|
Record effective pixel
|
4k:8.29MP / FHD:6.10MP(16:9)
|
|
Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<15ms
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
| Weight | 3 kg |
|---|---|
| Dimensions | 36 × 30 × 25 cm |
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Working environment temp. |
-40℃ ~ +60℃
|
|
Output
|
Skyport
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
DJI Pilot
|
|
Gimbal Spec
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±360°*N
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw:±0.03°
|
|
One-key to center
|
√
|
|
Camera Spec
|
|
|
Imager Sensor
|
Panasonic 1/2.3inch CMOS
|
|
Optical Image Stabilization
|
5 axis Optical Image Stabilization
|
|
Effective pixel
|
25.9MP
|
|
Lens optical zoom
|
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
|
|
Record effective pixel
|
4k:8.29MP / FHD:6.10MP(16:9)
|
|
Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<15ms
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
