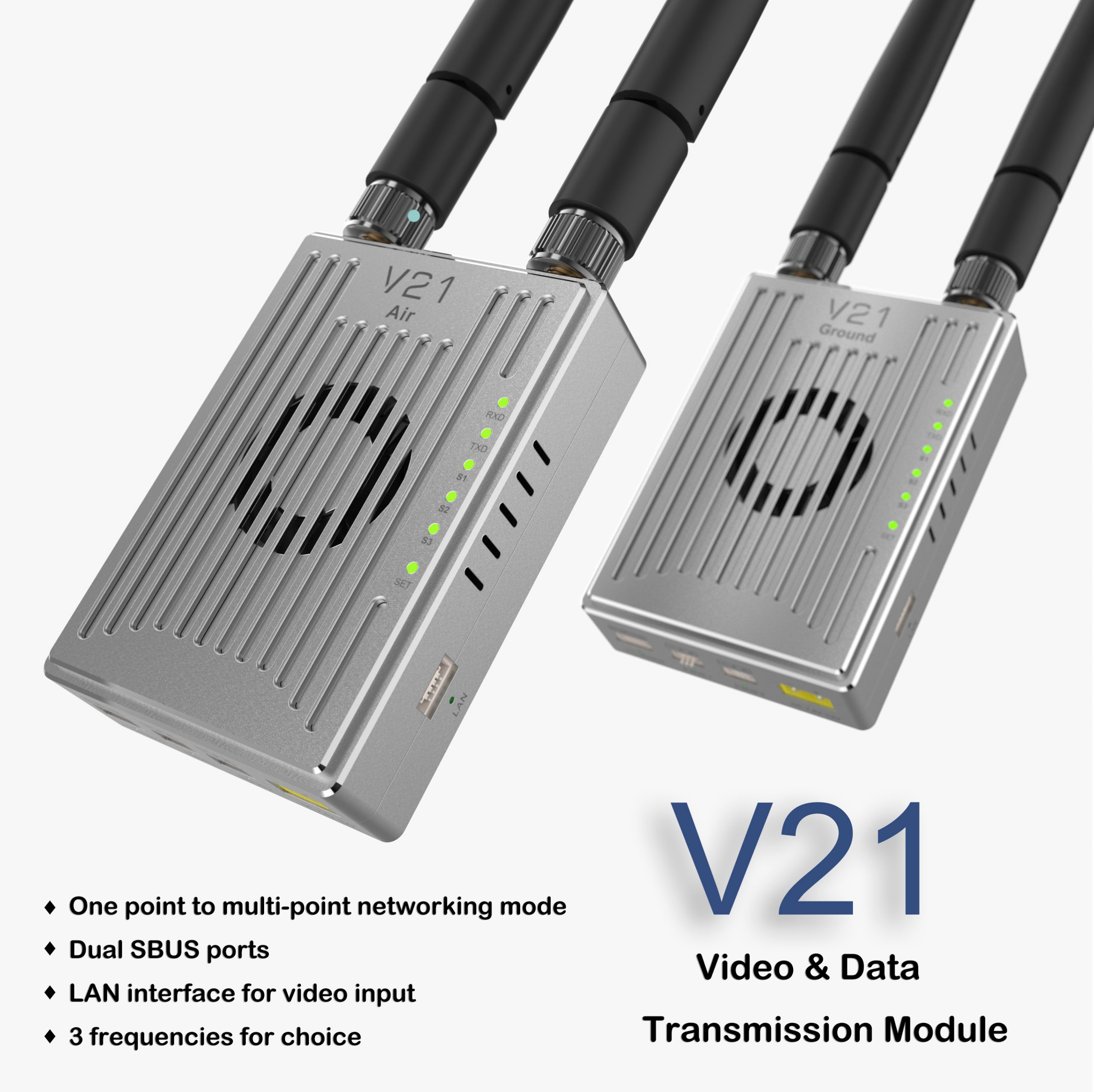

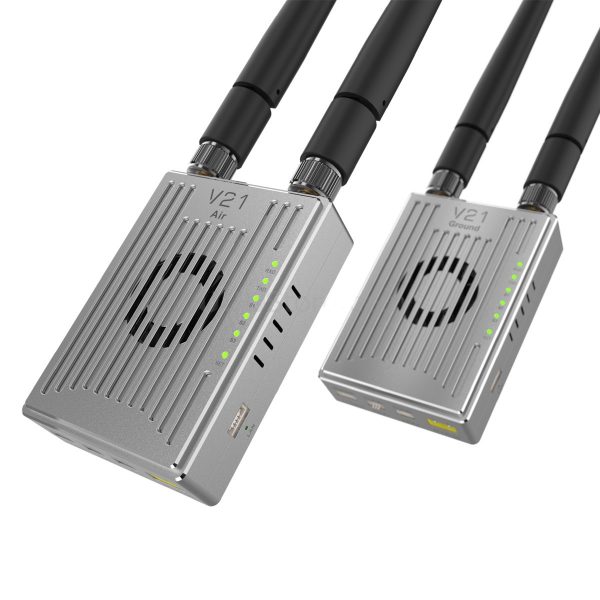

17KM video & data transmitter V21 Video link HD wireless digital data transmission link 3 in1 digital transmission and image transmission signals integrated with RC


$2,890.00

Compare

17KM video & data transmitter V21 Video link HD wireless digital data transmission link 3 in1 digital transmission and image transmission signals integrated with RC

17KM video & data transmitter V21 Video link HD wireless digital data transmission link 3 in1 digital transmission and image transmission signals integrated with RC , serial gateway function Simultaneous transmission of remote control signals, digital transmission signals, and image transmission signals Small size, easy to integrate, high sensitivity.

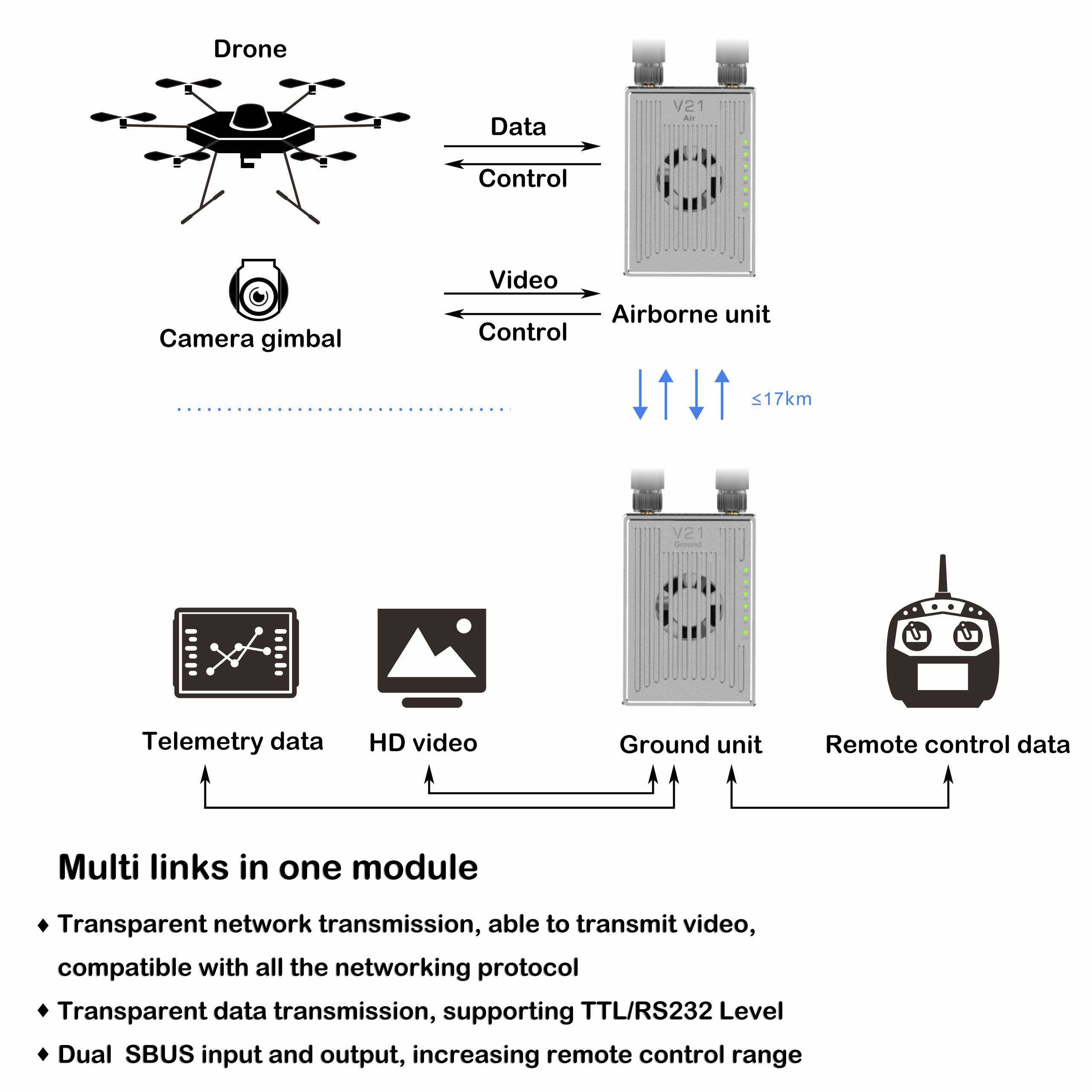

V21 Digital video and data transmission module is the wireless digital data link based on LTE wireless communication, adopting OFDM and MIMO technology. It can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to provide the control of the drone and the payload. RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one model, the frequency can be modified in the software and meanwhile, using the corresponding antennas, based on the environment. High integration greatly reduces the power consumption and the dimension of the product, which can satisfy the requirement of UAV, UGV, etc.

Parameters

Item

Parameters

Description

Frequency band

800MHz

1.4GHz

2.4GHz

806-826MHz

1427.9-1447.9MHz

2401.5-2481.5MHz

Power

-40-25dbm

adjustable

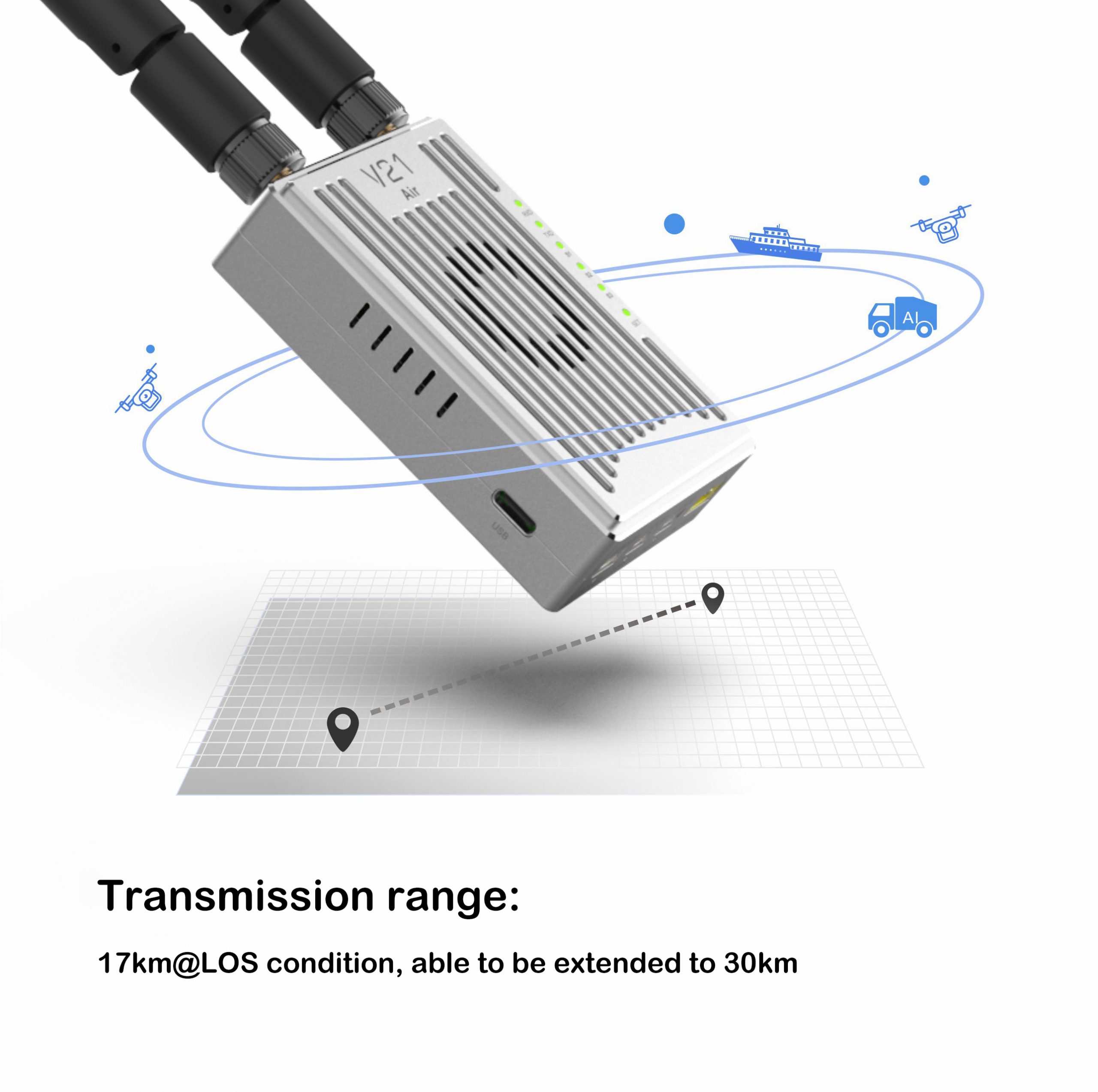

Transmission range

17km@LOS

Depend on environment

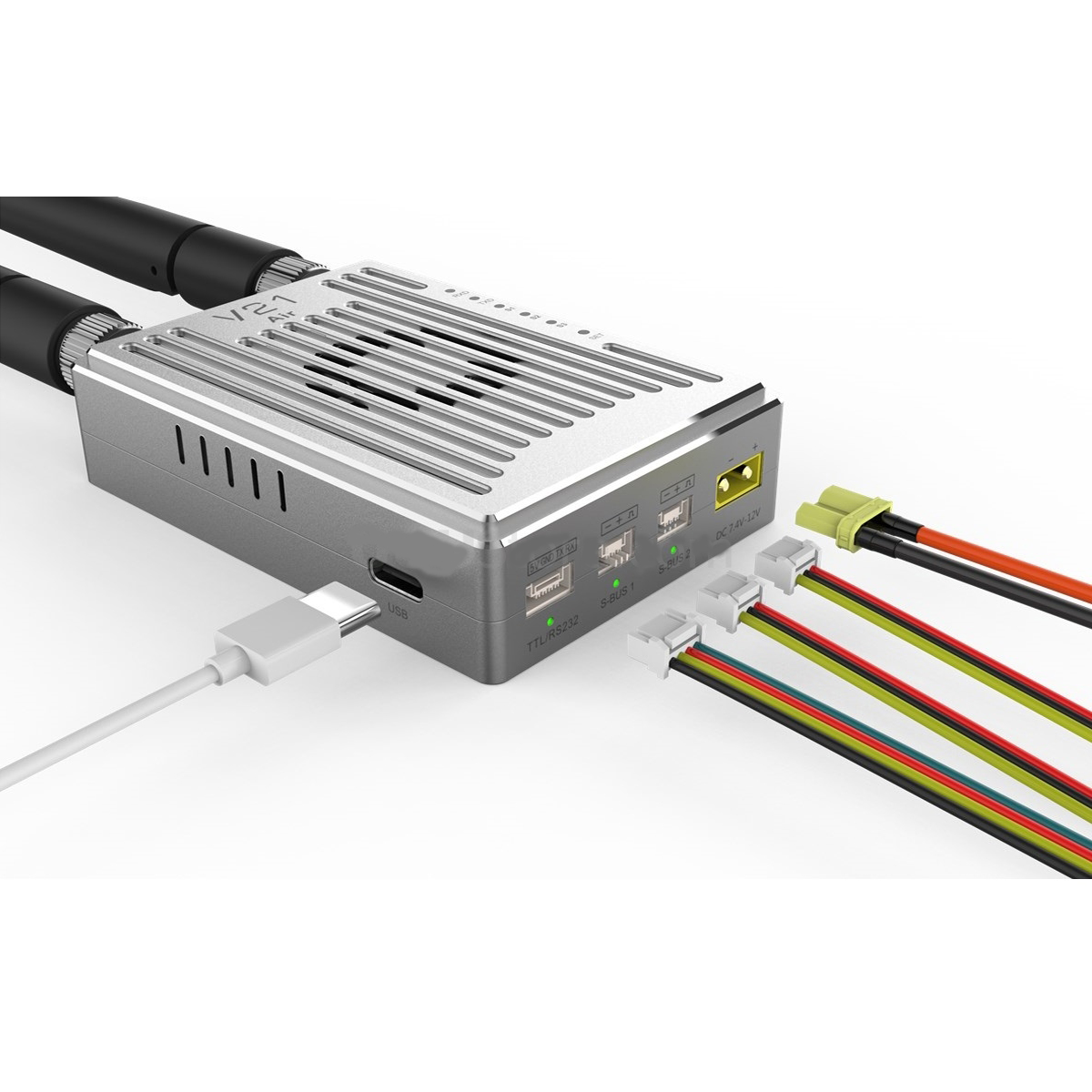

S-BUS port

2*S-BUS ports

NA

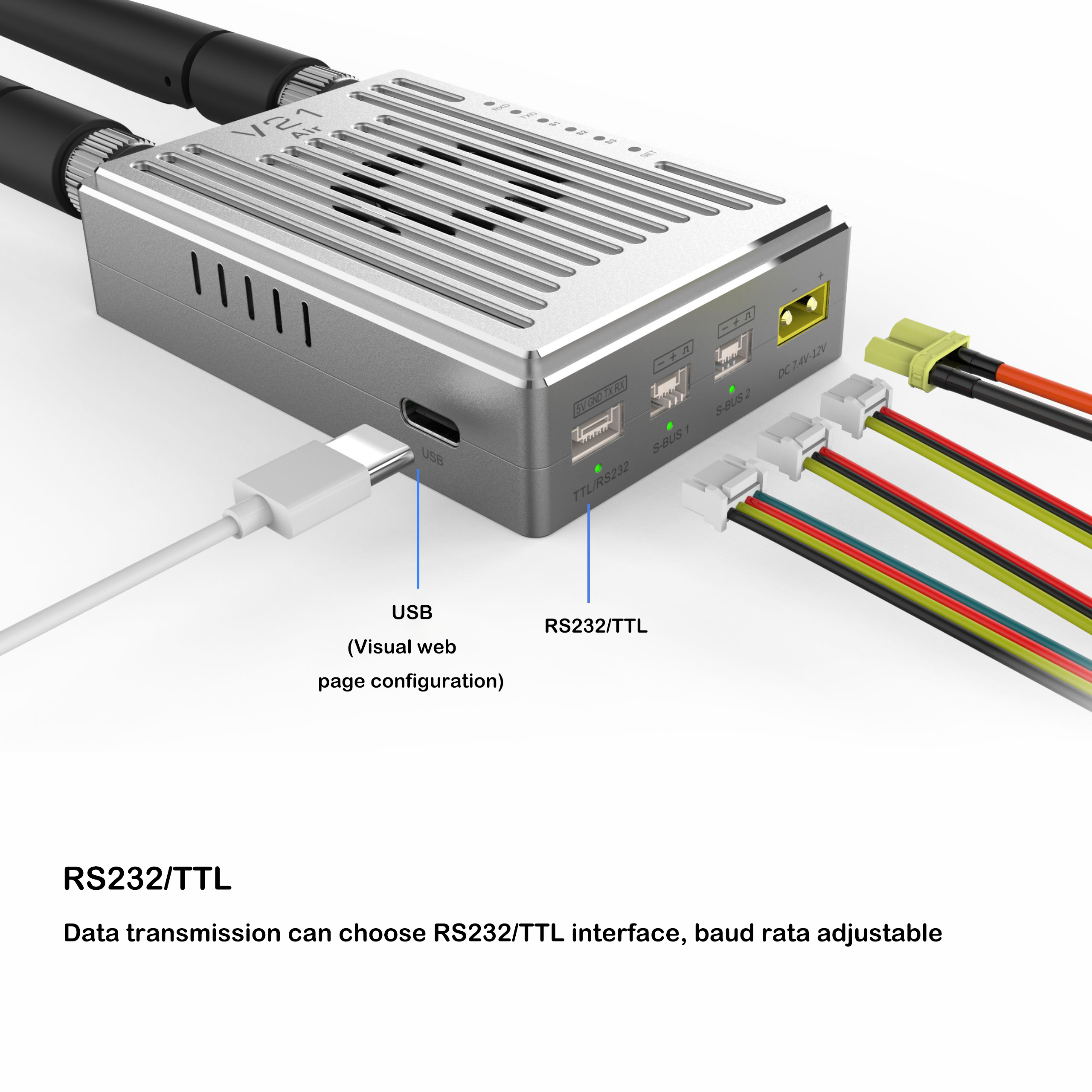

Serial port

1*serial port

Full duplex, baud rate adjustable

Latency

20ms

Transmission from Tx to Rx

Power supply voltage

7.4-12V

NA

Operation current

180mA

12v power supply

Bandwidth

1.4-20M

1.4M/3M/5M/10M/20M

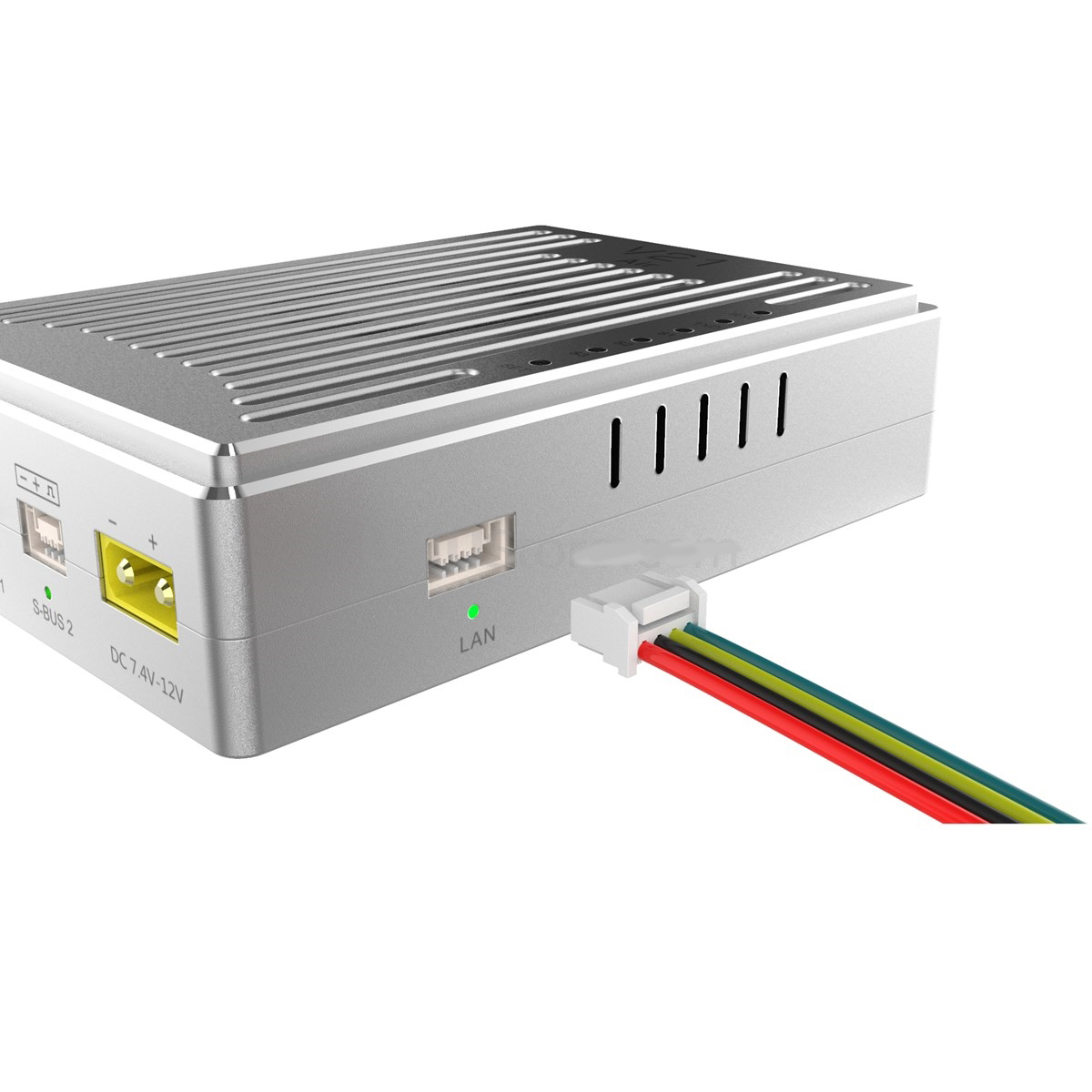

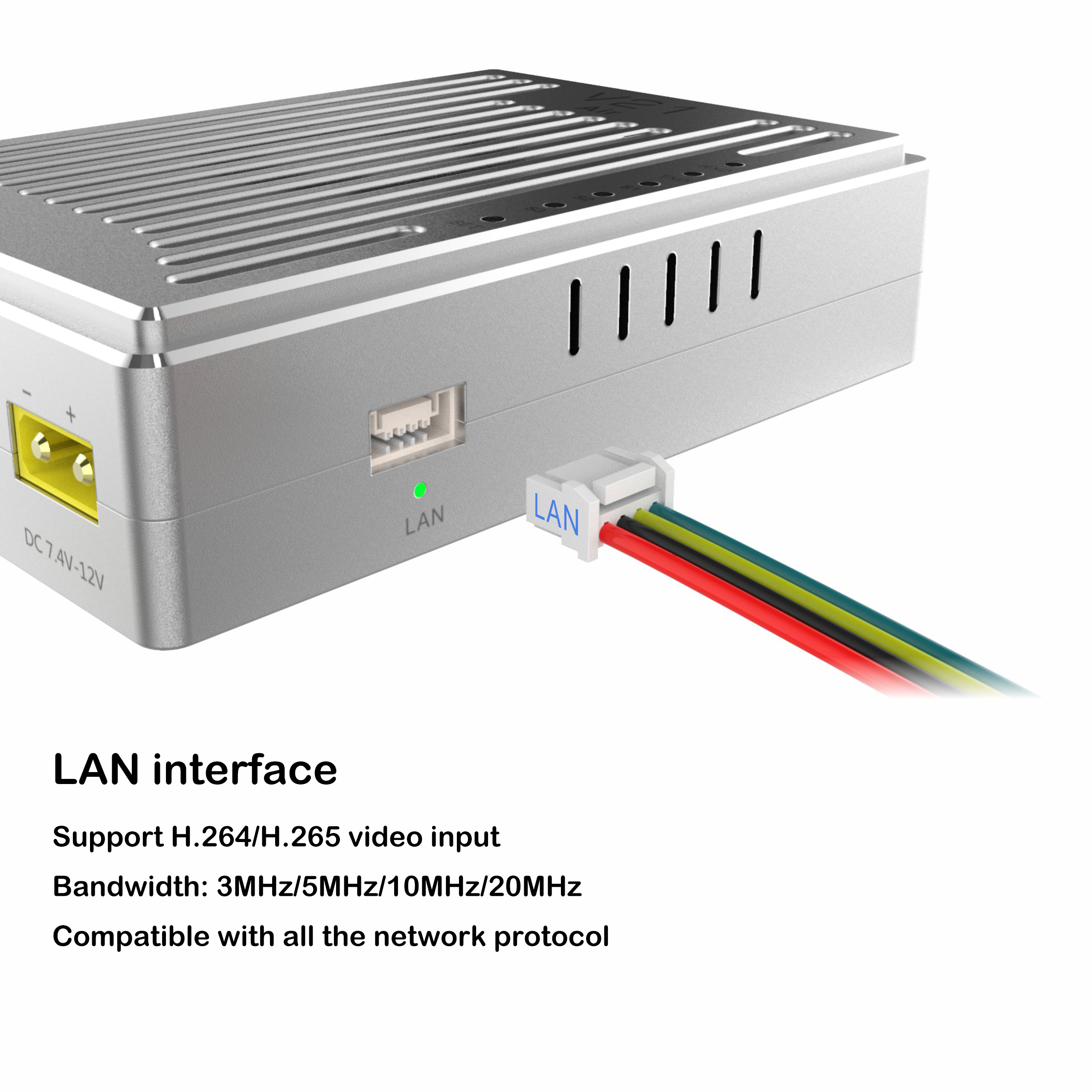

Video input/output

LAN

Connecting IPC device/PC

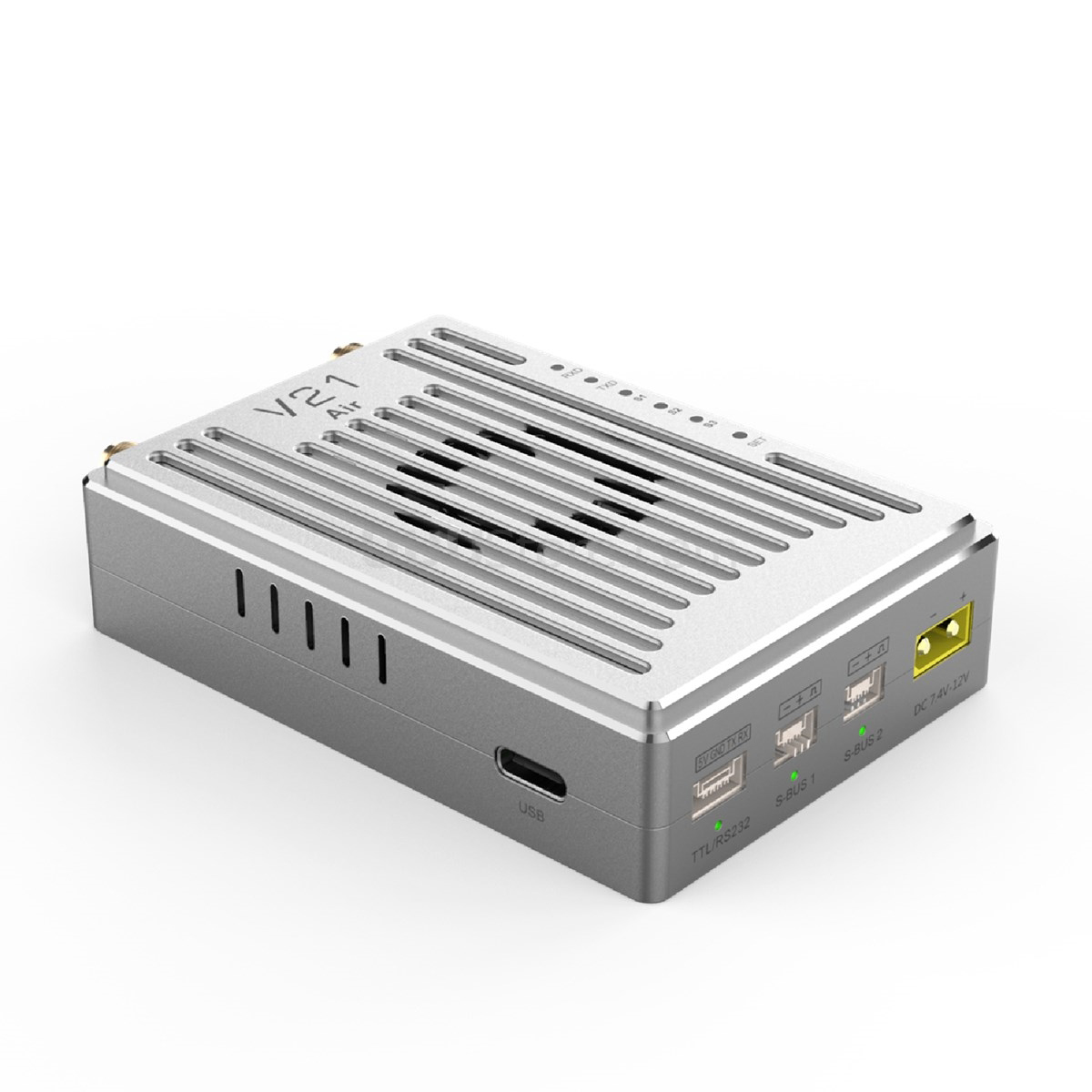

Power supply interface

XT30

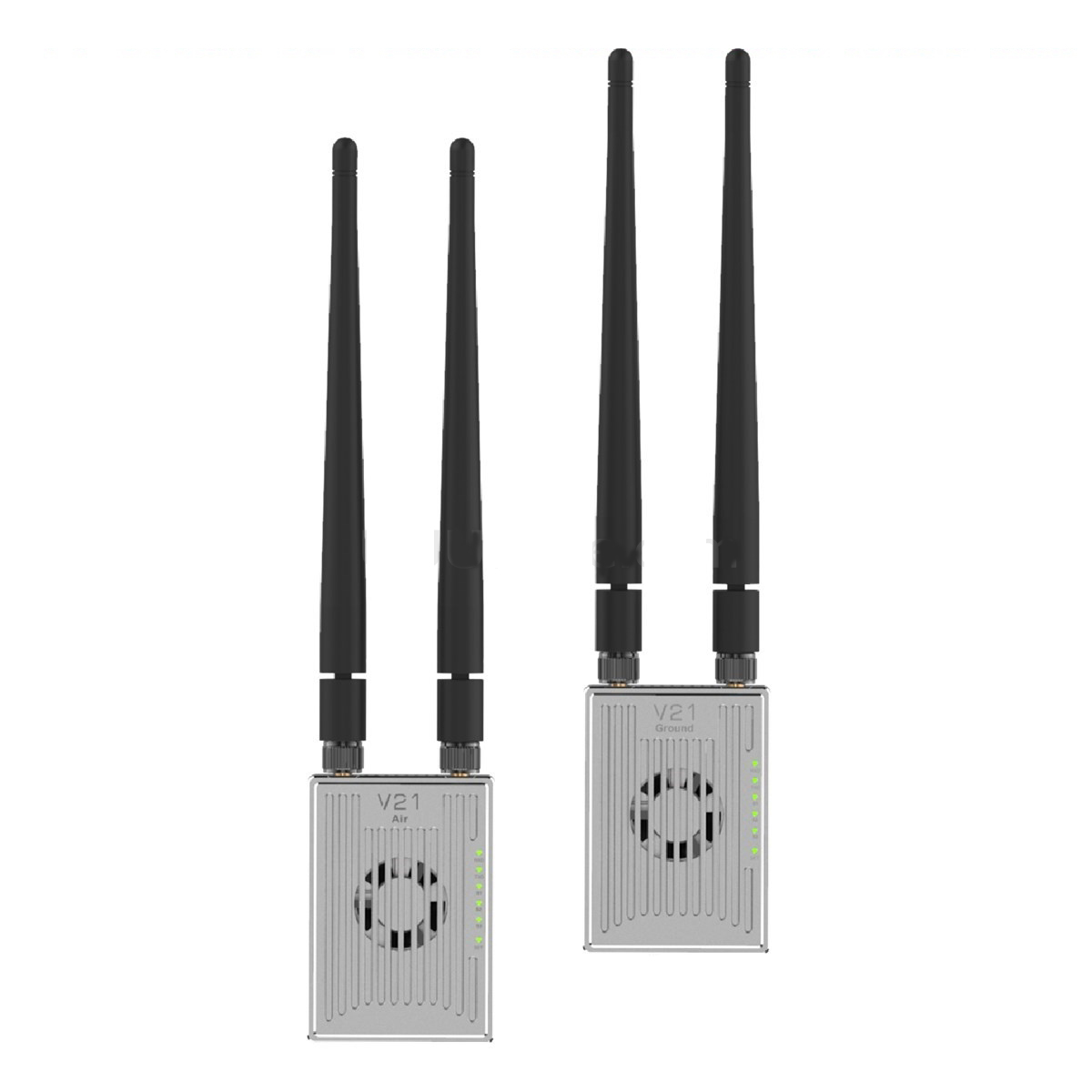

Antenna

2-4dB rod antenna

Dimension

85mm*55mm*20mm

Weight

100g(exclude antenna)

Operation temperature

-10℃-+50℃





Weight 1 kg
Dimensions 30 × 20 × 10 cm
